/Furniture/Stool.foocad

import uk.co.nickthecoder.foocad.smartextrusion.v1.*
import static uk.co.nickthecoder.foocad.smartextrusion.v1.SmartExtrusion.*
import static uk.co.nickthecoder.foocad.along.v3.Along.*
import uk.co.nickthecoder.foocad.woodworking.v1.*
import static uk.co.nickthecoder.foocad.woodworking.v1.Woodworking.*
import uk.co.nickthecoder.foocad.screws.v3.*
import static uk.co.nickthecoder.foocad.layout.v1.Layout2d.*
import static uk.co.nickthecoder.foocad.layout.v1.Layout3d.*

include BoxConstruction.foocad

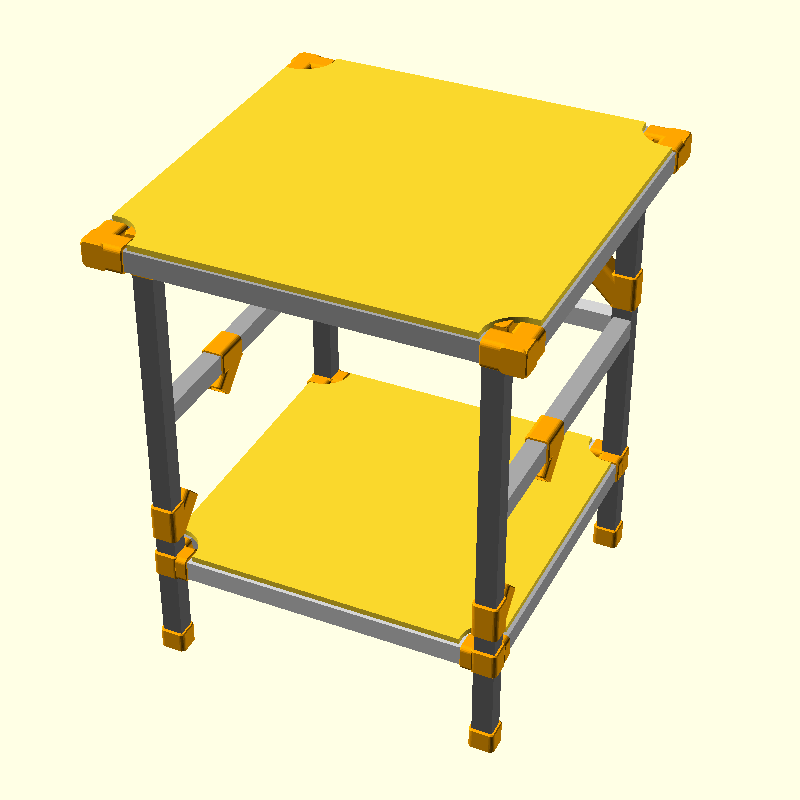

class Stool : Model {

    var size = Vector3( 360, 360, 480 )
    var linkThickness = 4
    var gap = 1
    var rodDiameter = 3.1
    val lidThickness = 12

    var lumberSize = Vector2( 21, 19 )

    var quick = false

    meth wood() = Wood( "main", lumberSize.x, lumberSize.y ).color("DarkGrey")

    meth screwHole() = if (quick) {
            Cube(0)
        } else {
            Countersink().headDiameter(7).holeDiameter(3.5).recess(0.75).depth(2.8)
        }

    meth construction() : BoxConstruction = BoxConstruction().apply {
        cornerExtra = 17
        angleExtra = 10
        thickness = 3.0
        insideRadius = 2
        crossSection = lumberSize
        screwHole = screwHole()
    }

    meth fourOf( shape: Shape3d ) : Shape3d {
        return shape.leftTo(1).frontTo(1).mirrorX().also().mirrorY().also()
    }

    @Piece( about="For base's top corners. Required: 2x2" )
    meth corner() : Shape3d {
        val con = construction()
        // As the corner will be hidden by the seat, we can add an extra screw...
        return con.cornerB() -
            screwHole().mirrorZ()
                .translateX( con.thickness + wood().thickness/2 )
                .translateY( con.thickness + wood().width/2 )
    }

    @Piece
    meth corners() = fourOf( corner() )

    @Piece(about="For bars near the floor. Required: 2x2" )
    meth forBar() : Shape3d {
        val a = construction().straightConnectorA()
        val b = construction().straightConnectorC()
            .mirrorY()
            .mirrorZ().bottomTo(0)
            .rotateZ(90)
            .leftTo( a.left ).frontTo( a.front )

        return (a and b).rotateX(90).bottomTo(0)
    }

    @Piece
    meth forBars() = fourOf( forBar() )

    @Piece
    meth forRailA() = forBar()

    @Piece
    meth forRailB() = construction().straightConnectorC().rotateX(90).bottomTo(0)

    @Piece
    meth forRails() : Shape3d {
        val a = forRailA().leftTo(1).frontTo(1)
        val b = forRailB().rightTo(-1).frontTo(1)
        return (a + b).mirrorY().also()
    }

    @Piece
    meth angleA() = construction().angleA(45)

    @Piece
    meth angleC() = construction().angleC(45)

    @Piece
    meth backAngles() : Shape3d {
        return fourOf( angleA() )
    }

    @Piece
    meth frontAngles() : Shape3d {
        val con = construction()

        val a = angleA().leftTo(1).mirrorX().also().frontTo(1)
        val c = angleC().leftTo(1).mirrorX().also().backTo(-1)

        return a + c
    }

    @Piece( about="For Lid's corners. Required: 2x2" )
    meth elbow() = construction().jointC()

    @Piece
    meth elbows() : Shape3d {
        return fourOf( elbow() )
    }

    @Piece
    meth foot() = construction().endStop(20) -
        screwHole().mirrorZ()

    @Piece
    meth feet() = fourOf( foot() )

    @Piece( about="Rubber (TPU) glued to piece `foot` (or directly to the leg if you prefer)" )
    meth footPad() = Square( wood().width + 2, wood().thickness + 2 )
            .center()
            .roundAllCorners(3)
            .smartExtrude(2)
                .top( Chamfer(1.5) )
            .color("Purple")

    meth ply( x : double, y : double, cornerSize: double ) : Shape3d {
        val sq = Square(x,y).offset(-3).center()
        val corners = Square( cornerSize -3 )
            .roundCorner(2, cornerSize*0.75)
            .leftTo(sq.left).frontTo(sq.front)
            .mirrorX().also().mirrorY().also()

        return (sq-corners).extrude(6)
    }

    @Piece( about="A template to draw the corners of the seat" )
    meth topCornerJig() = cornerJig( wood().width*2 )
    @Piece( about="A template to draw the corners of the shelf" )
    meth shelfCornerJig() = cornerJig( wood().width*1.75 )
    meth cornerJig( cornerSize : double) : Shape3d {
        val hole = Square( cornerSize -3 )
            .roundCorner(2, cornerSize*0.75 )
        val shape = Square( cornerSize*1.5 ).roundCorner(2,cornerSize*2) - hole

        val walls = Cube( 2, cornerSize/2, 4 )
            .rightTo(0)
            .frontTo( cornerSize )
            .rotateZ(-90).backTo(0).also(2)

        return shape.extrude(0.6) + walls
    }

    @Piece( printable=false )
    meth seat() : Shape3d {
        val con = construction()
        val wood = wood()

        val extra = con.thickness*4 + 6
        val size = Vector2( this.size.x + wood.thickness*2 + extra, this.size.y + wood.thickness*2 + extra )

        val sides = wood.cut( size.x )
            .label("lidSide")
            .edgeDownAlongX().centerX().frontTo( -size.y/2 )
            .mirrorY().also()
        val ends = wood.cut( size.y - wood.thickness*2 )
            .label("lidEnd")
            .edgeDownAlongY().centerY().leftTo( -size.x/2 )
            .mirrorX().also()

        val corners = elbow()
            .rotateX(-90).bottomTo( -con.thickness )
            .leftTo( -size.x/2 - con.thickness )
            .frontTo( -size.y/2 - con.thickness )
            .mirrorX().also().mirrorY().also()
            .color("Orange")

        val ply = ply( size.x, size.y, wood.width*2 )
            .bottomTo( sides.top )

        return sides + ends + corners + ply
    }


    meth rail() : Shape3d {
        val con = construction()
        val wood = wood()

        val sideRails = wood.cut( size.y - wood.thickness*2 )
            .label("sideRail")
            .edgeDownAlongY()
            .centerY()
            .rightTo( size.x/2 )
            .mirrorX().also()
        val backRail = wood.cut( size.x - wood.width*2 )
            .label("endRail")
            .edgeDownAlongX()
            .centerX()
            .backTo( size.y/2 )
            .color("LightGrey")

        val forRailsA = forRailA().rotateX(-90)
            .rotateZ(180)
            .rightTo( sideRails.right + con.thickness )
            .backTo( backRail.back + con.thickness )
            .bottomTo( - con.thickness )
            .mirrorX().also()
            .color("Orange")

        val forRailsB = forRailB().rotateX(-90)
            .rotateZ(90)
            .rightTo( sideRails.right + con.thickness )
            .frontTo( -size.y/2 - con.thickness )
            .bottomTo( - con.thickness )
            .mirrorX().also()
            .color("Orange")

        return sideRails + backRail //+ forRailsA + forRailsB
    }

    meth shelf() : Shape3d {

        val con = construction()
        val wood = wood()

        val sideBars = wood.cut( size.y - wood.width*2 )
            .label("sideBar")
            .edgeDownAlongX().centerX().frontTo( -size.y/2 )
            .mirrorY().also()
            .color("LightGrey")

        val endBars = wood.cut( size.x - wood.thickness*2 )
            .label("endBar")
            .edgeDownAlongY().centerY().leftTo( -size.x/2 )
            .mirrorX().also()

        val shelf = ply( size.x -2, size.y-2, wood.width*1.75 )
            .bottomTo( sideBars.top )

        val forBars = forBar().rotateX(-90)
            .translateX( -size.x/2 + wood.width )
            .frontTo( -size.y/2 - con.thickness )
            .translateZ( -con.thickness )
            .mirrorX().also().mirrorY().also()
            .color("Orange")

        return sideBars + endBars + forBars + shelf
    }

    @Piece( printable=false )
    override fun build() : Shape3d {
        quick = true
        val con = construction()
        val wood = wood()

        val barHeight = size.z * 0.2
        val railHeight = size.z * 0.6

        val corners = corner()
            .rotateZ(90)
            .rightTo( size.x/2 + con.thickness )
            .frontTo( -size.y/2 - con.thickness )
            .mirrorX().also().mirrorY().also()
            .mirrorZ().translateZ(size.z + con.thickness)
            .color("Orange")

        val foot = foot()
            .leftTo( -size.x/2 -con.thickness )
            .frontTo( -size.y/2 - con.thickness )
            .translateZ( - con.thickness )
        val feet = foot
            .mirrorX().also().mirrorY().also()
            .color("Orange")

        val pad = footPad().mirrorZ()
            .centerXTo( foot.middle.x )
            .centerYTo( foot.middle.y )
            .topTo(feet.bottom)
        val pads = pad
            .mirrorX().also().mirrorY().also()


        val strutSide = wood.cut( size.x )
            .label("sideStrut")
            .edgeDownAlongX().centerX().frontTo( -size.y/2 )
            .mirrorY().also()
            .color("DarkGrey").darker()
        val strutEnds = wood.cut( size.y - wood.thickness*2 )
            .label("endStrut")
            .edgeDownAlongY().centerY().leftTo( -size.x/2 )
            .mirrorX().also()
        val legs = wood.cut( size.z - wood.width )
            .label("leg")
            .leftTo( -size.x/2 ).frontTo( -size.y/2 )
            .mirrorX().also().mirrorY().also()
            .color("DimGray")

        val struts = legs +
            (strutSide + strutEnds).translateZ( size.z - wood.width)

        val seat = seat()
            .translateZ( size.z - wood.width )

        val shelf = shelf().translateZ( barHeight )

        val backAngleJoints1 = con.angleA(45)
            .rotateY(90)
            .backTo( corners.back )
            .topTo( corners.top )
            .translateX(10).mirrorX().also()
            .color("Orange")
        val backAngleJoints2 = con.angleA(45)
            .backTo( corners.back )
            .leftTo(corners.left).mirrorX().also()
            .bottomTo( size.z - size.x/2 )
            .color("Orange")

        val frontAngleJoints1 = con.angleC(45)
            .rotateZ(90)
            .frontTo( corners.front )
            .bottomTo( railHeight - 150 )
            .leftTo( corners.left ).mirrorX().also()
            .color("Orange")

        val frontAngleJoints2 = con.angleA(45)
            .rotateZ(-90).rotateX(90)
            .backTo( -size.y/2 + 150 )
            .leftTo( corners.left ).mirrorX().also()
            .topTo( railHeight + con.thickness )
            .color("Orange")

        val angles = backAngleJoints1 + backAngleJoints2 + frontAngleJoints1 + frontAngleJoints2

        val rails = rail().topTo( railHeight )

        return struts + corners + rails  + angles + seat + feet + pads + shelf
    }

}
