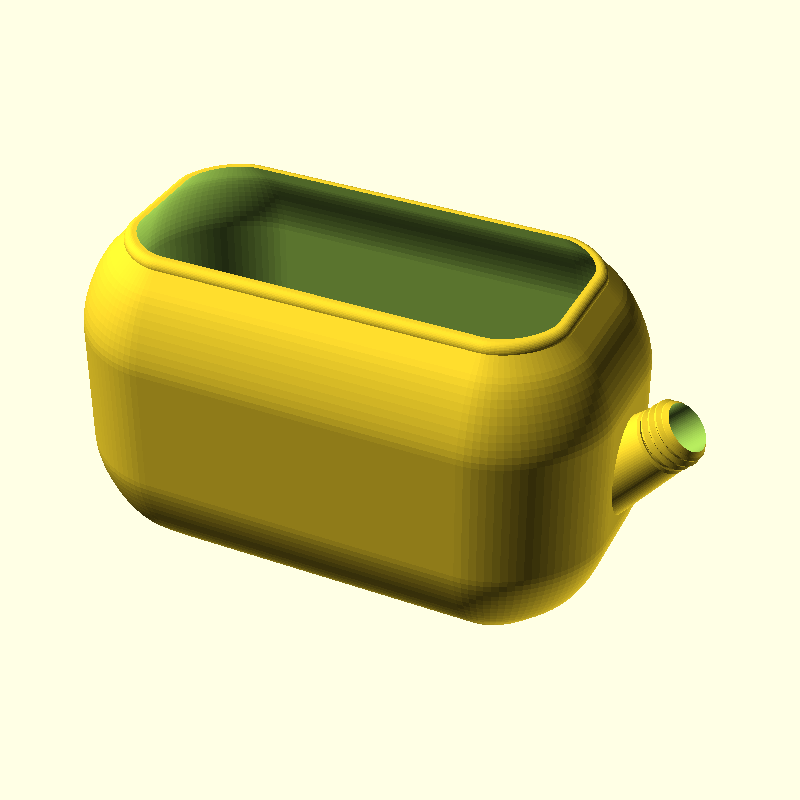

/Garden/WateringCan.foocad

import uk.co.nickthecoder.foocad.threaded.v2.*
import uk.co.nickthecoder.foocad.smartextrusion.v1.*
import static uk.co.nickthecoder.foocad.smartextrusion.v1.SmartExtrusion.*
import uk.co.nickthecoder.foocad.cup.v1.*
import static uk.co.nickthecoder.foocad.cup.v1.Cup.*

class WateringCan : Model {

    @Custom
    var size = Vector3( 250, 140, 150 )

    @Custom
    var round = 50

    @Custom
    var wallThickness = 1.8

    @Custom
    var baseThickness = 1.8

    @Custom
    var spoutThread = Thread( 30 )

    @Piece
    meth body() : Shape3d {
        val shape = Square( size.x, size.y ).center()
            .roundAllCorners(round)

        val outside = shape.smartExtrude( size.z )
            .bottom( ProfileEdge.roundedChamfer( round ) )
            .top( ProfileEdge.roundedChamfer( round ) )
        val inside = shape.offset( -wallThickness )
            .smartExtrude( size.z - baseThickness + 0.01 )
            .bottom( ProfileEdge.roundedChamfer( round ) )
            .top( ProfileEdge.roundedChamfer( round ) )
            .bottomTo( baseThickness )

        val main = outside - inside

        val rim = shape.offset(-round/2 + 4)
            .smartExtrude( 7 )
            .top( Fillet(4) )
            .topTo( outside.top )

        val spoutStub = Circle( spoutThread.diameter / 2 )
            .smartExtrude( 50 )
            .top( Chamfer(1) )
            .offsetBottom(5)
        val thread = spoutThread.threadedRod( 16 )
            .chamferBottom(false)
            .bottomTo( spoutStub.top - 1 )
        val spoutHole = Circle( spoutThread.coreRadius() - 1.8 )
            .smartExtrude( thread.top + 0.02 )
            .bottomTo( -0.01)
        val spout = (spoutStub.and( thread ).remove( spoutHole ) )
            .rotateY(45)
            .translateX( size.x / 2 -20).translateZ( size.z/2-20 )

        return main and rim and spout remove inside
    }

    override fun build() : Shape3d {
        return body()
    }


}
