/Hardware/CurvedAttachment.foocad

import uk.co.nickthecoder.foocad.smartextrusion.v1.*
import static uk.co.nickthecoder.foocad.smartextrusion.v1.SmartExtrusion.*
import uk.co.nickthecoder.foocad.screws.v3.*
import uk.co.nickthecoder.foocad.threaded.v2.*

class CurvedAttachment : Model {

    @Custom
    var thread = Thread( 12, 2 )

    @Custom
    var depth = 10

    @Custom
    var curveDiameter = 100

    @Custom
    var washerThickness = 1.0

    @Custom
    var lipWidth = 4

    @Piece
    meth washerCurvedExterior() : Shape3d {
        val inner = Circle( thread.diameter/2 )
        val outer = Circle( thread.diameter/2 + lipWidth )

        val solid = (outer - inner).extrude( 30 )
        val curve = Circle( curveDiameter/2 ).extrude( outer.size.x + 1 )
            .rotateY(90)
            .bottomTo( washerThickness )
            .centerXY()

        return solid - curve
    }

    @Piece
    meth washerCurvedInterior() : Shape3d {
        val largeRadius = thread.diameter/2 + lipWidth

        val inner = Circle( thread.diameter/2 )
        val outer = Circle( largeRadius )


        val angle = Math.asin( largeRadius / (curveDiameter/2) )
        val cy = Math.cos( angle ) * curveDiameter/2

        val solid = (outer - inner).extrude( 30 )
        val curve = Circle( curveDiameter/2 ).extrude( outer.size.x + 1 )
            .rotateY(90)
            .translateZ(-cy + washerThickness)
            .centerXY()

        return solid.intersection( curve )
    }

    @Piece
    meth threadedRod( length : double ) : Shape3d {
        return thread.threadedRod( length )
            .chamferBottom(false)
    }

    @Piece
    meth bolt() : Shape3d {
        return thread.bolt( depth )
    }

    @Piece
    meth nut() : Shape3d {
        return thread.nut()
    }

    @Custom
    var squareAttachmentSize = Vector3( 20, 30, 10 )

    @Piece
    meth squareAttachment() : Shape3d {
        val baseThickness = 1.2
        val wallThickness = 3
        val cutoutShape = Square( squareAttachmentSize.x, squareAttachmentSize.y )
            .center().roundAllCorners(1,4)

        val headShape = cutoutShape.offset( wallThickness )

        val newHead = headShape
            .smartExtrude(squareAttachmentSize.z + baseThickness )
            .top( Chamfer(1) )

        val cutout = cutoutShape
            .smartExtrude( newHead.size.z - 3 )
                .bottom( Chamfer(0.4).reverse() )

            .bottomTo(-0.01)

        val rod = threadedRod( depth + baseThickness ).bottomTo( newHead.top - baseThickness )

        val screwHole = Countersink.medium().topTo( rod.top )

        return newHead + rod - cutout - screwHole
    }

    @Piece
    meth slottedAttachment() : Shape3d {
        val baseThickness = 1.2
        val wallThickness = 3
        val cutoutShape = Square( squareAttachmentSize.x, squareAttachmentSize.y )
            .center().roundAllCorners(1,4)

        val headShape = Square( squareAttachmentSize.x + wallThickness *2, squareAttachmentSize.y + wallThickness )
            .center().roundAllCorners(1+wallThickness,4).translateY(-wallThickness/2-0.1)

        val newHead = headShape
            .smartExtrude(squareAttachmentSize.z + baseThickness )
            .top( Chamfer(1) )

        val cutout = cutoutShape
            .smartExtrude( newHead.size.z - 3 )
                .bottom( Chamfer(0.4).reverse() )
            .bottomTo(-0.01)

        val rod = threadedRod( depth + baseThickness ).bottomTo( newHead.top - baseThickness )

        val screwHole = Countersink.medium().topTo( rod.top )

        return rod + newHead - cutout - screwHole
    }

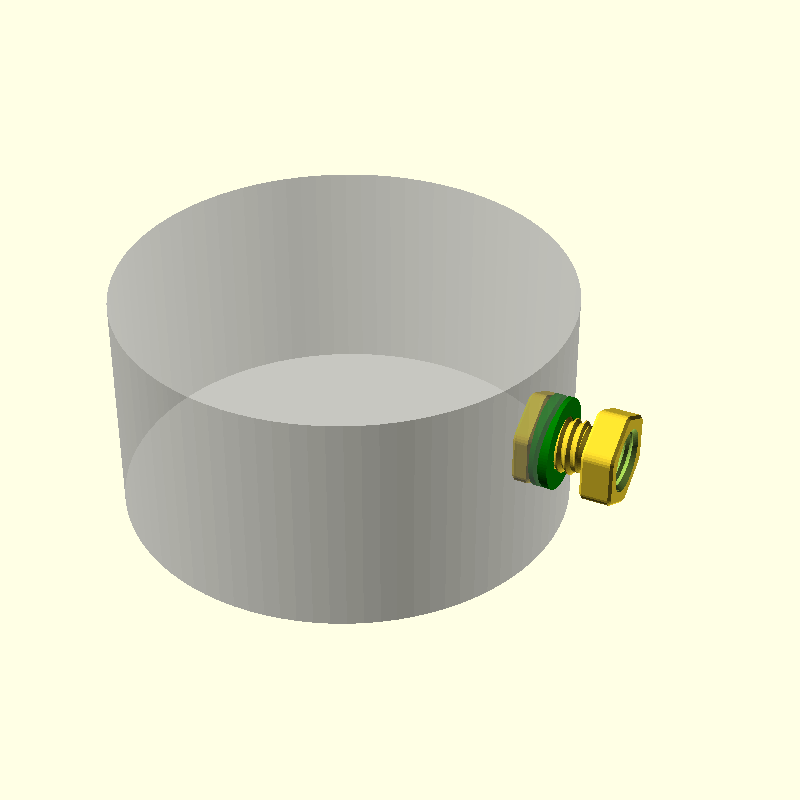

    override fun build() : Shape3d {

        val container = Circle( curveDiameter/2 ).extrude( curveDiameter/2 )
            .previewOnly()

        val washerIn = washerCurvedInterior()
            .rotateY(90)
            .translateZ( curveDiameter/4 )
            .rightTo( curveDiameter/2 - 1 )
            .color("Green")

        val washerOut = washerCurvedExterior()
            .rotateY(-90)
            .translate( curveDiameter/2 + washerThickness, 0, curveDiameter/4 )
            .color("Green")

        val bolt = bolt()
            .rotateY(90)
            .translateZ( curveDiameter/4 )
            .leftTo( washerIn.left - thread.headSize.y )

        val nut = nut()
            .rotateY(90)
            .translateZ( curveDiameter/4 )
            .leftTo( bolt.right + 1 )

        return container + washerOut + washerIn + bolt + nut
    }

}
