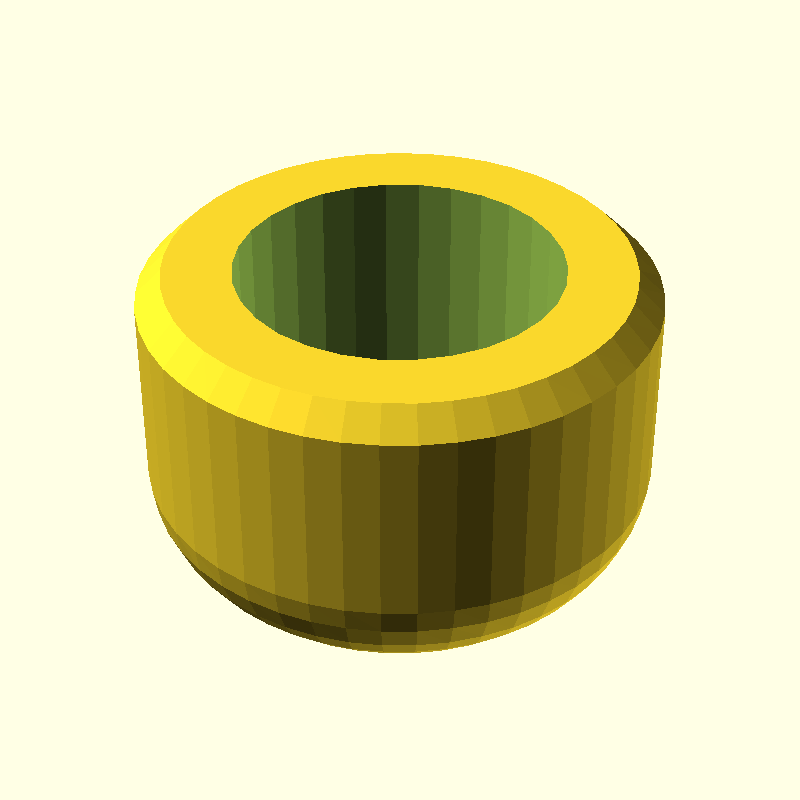

/Tools/TapEndCap.foocad

I bought a very cheap set of taps. The bar used to turn the taps falls out! So this cap can be glued to the bar to prevent it.

FooCAD Source Code

import uk.co.nickthecoder.foocad.smartextrusion.v1.*
import static uk.co.nickthecoder.foocad.smartextrusion.v1.SmartExtrusion.*

class TapEndCap : Model {

    @Custom
    var internalDiameter = 6.2

    override fun build() : Shape3d {

        val outside = Circle( internalDiameter/2 + 1.8 )
            .smartExtrude( 6 )
            .bottom( ProfileEdge.roundedChamfer(2) )
            .top( Chamfer(0.5) )

        val inside = Circle( internalDiameter/2 )
            .smartExtrude( 6 )
            .bottom( Chamfer(0.5) )
            .bottomTo(1)

        return outside - inside
    }

}
